RXV
RXV
The RXV® is known on golf courses everywhere for its superiority under the seat. Whether it's the industry-leading ELiTE® lithium battery powered by Samsung SDI technology or 13.5-hp gas engine with closed-loop EFI, the RXV is a low-maintenance, high-performance golf cart you can always rely on. And now, the RXV creates a noticeable difference for golfers too, with a purpose-built dash and automotive pedals that completely streamline the way they play. Turn your course into a player's paradise with a custom fleet of RXVs.

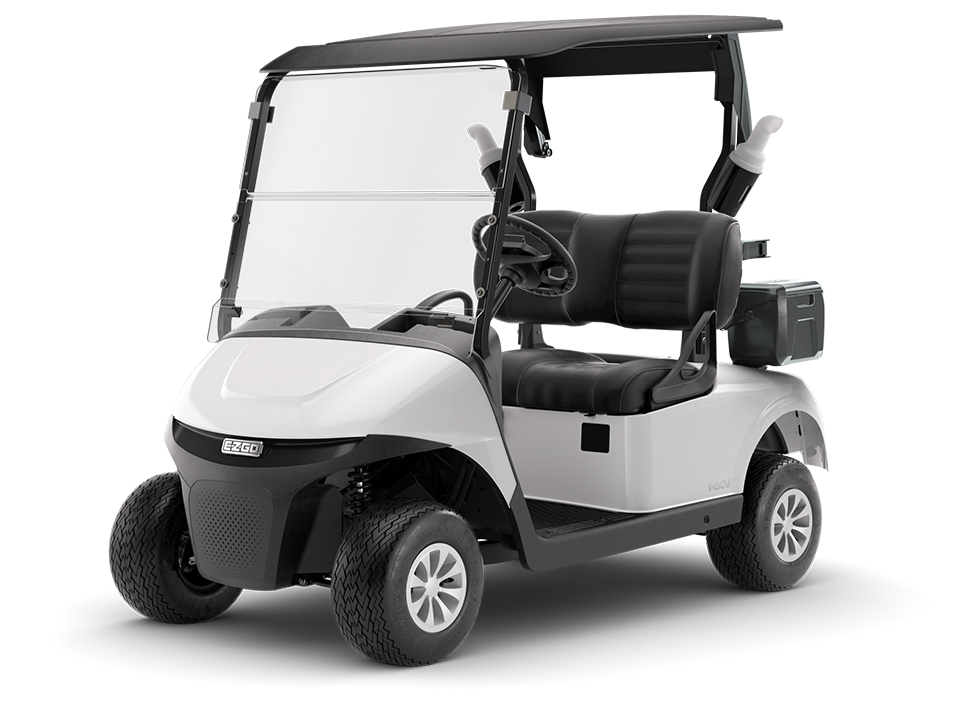

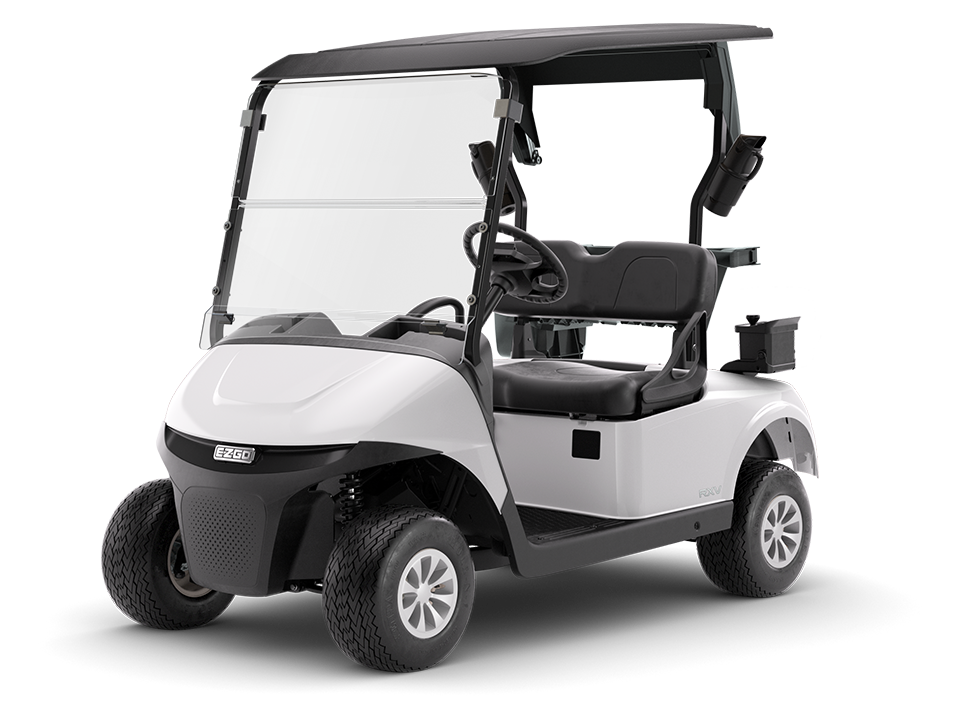

Shown on RXV 13.5-hp Gas
Color: Bright White
-
Seats
2 - 4
-
Powertrains
ELiTE Lithium 13.5-hp Gas
- Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
RXV Specifications
Explore the details that'll give your golfers a superior experience on the course.
-
Dimensions
RXV 13.5-hp Gas RXV ELiTE Lithium Overall Length 92.5 in (235 cm) 92.5 in (235 cm) Overall Width 45 in (114 cm) 45.0 in (114 cm) Overall Height (w/o Roof) 47.5in (121 cm) 47.5in (121 cm) Overall Height (w/ Roof) 68.5 in (174cm) 67 in (170 cm) Wheel Base 65.7 in (167 cm) 65.7 in (167 cm) Front Wheel Track 35.5 in (90 cm) 35.5 in (90 cm) Rear Wheel Track 38 in (97 cm) 38.0 in (97 cm) Ground Clearance 3.3 in (8 cm) 4.0 in (10 cm) -
Power
RXV 13.5-hp Gas RXV ELiTE Lithium Power Source Single Cylinder OHV, 4 Cycle, 24.5 cu in (401 cc) 56.7-VDC Valve Train Single Cylinder OHV N/A Fuel System Closed-Loop Electronic Fuel Injection N/A Horsepower/kW 13.5 hp (10.1 kW) J1995 Standard 4.4 hp (3.3 kW) Continuous Electrical System Starter / Generator. Solid State Regulator 48 Volt AC Key/Pedal Start Pedal Pedal Air Cleaner Industrial Rated Dry Filter N/A Lubrication Pressurized Oil System N/A Cooling System Air Cooled N/A Oil Filter Spin On N/A Fuel Capacity 5.82 Gal (22.0 Liter) N/A Speed Controller N/A 235-amp Solid-State AC Controller Drivetrain Continuously Variable Transmission (CVT) Motor Shaft Direct Drive Transaxle Differential with Helical Gears Limited Slip Differential Gear Selection Forward - Reverse Dash Mounted FNR/Key Switch Rear Axle Ratio 11:47:1 (Forward) 14:35:1 (Reverse) 16.99:1 Batteries (Qty/Type) One, 12-Volt Maintenance-Free ELiTE 2.2, 56.7V Lithium Battery Charger N/A Lithium World Charger 56VDC 10 ft. DC Cord -
Performance
RXV 13.5-hp Gas RXV ELiTE Lithium Dry Weight 697 lb (316 kg) 633 lb (287 kg) Curb Weight 747 lb (339 kg) 680 lb (308 kg) Load Capacity 500 lb (227 kg) 500 lb (227 kg) (2 Passenger) or 800 lb (360 kg) (4 Passenger) Outside Clearance 19 ft (5.8 m) 19.2 ft (5.9 m) Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) 12 mph (19.3 kph) Range ± 0.5 mph (± 0.8 kph) ± 0.5 mph (± 0.8 kph) -
Steering & Suspension
RXV 13.5-hp Gas RXV ELiTE Lithium Steering Double Ended Rack & Pinion Double-Ended Rack and Pinion Suspension Independent A-Arm Coil Over Shock (Front) - Mono-Leaf Springs with Hydraulic Shocks (Rear) Front: Independent A-Arm Coil-Over Shock; Rear: Mono-Leaf Spring With Hydraulic Shocks Service Brake Rear Wheel Mechanical Self-Adjusting Drum Induction Motor Parking Brake Self-Compensating, Single Point Engagement Automatic Electro-Magnetic Tires 18 x 8.50-8 (4-ply rated) 18 x 8.50-8 (4-ply rated) -
Body & Chassis
RXV 13.5-hp Gas RXV ELiTE Lithium Frame Welded Steel with Powder-Coat Protection Welded Steel with Powder-Coat Protection Body & Finish Injection Molded TPO Injection Molded TPO
*Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

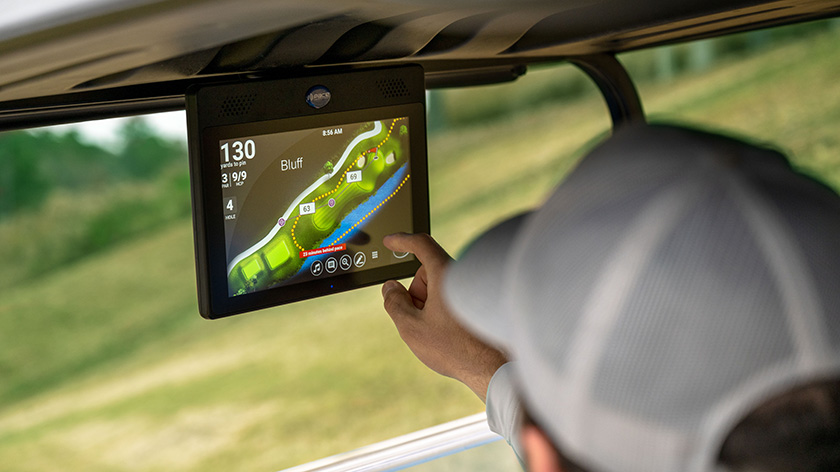

Setting the Pace

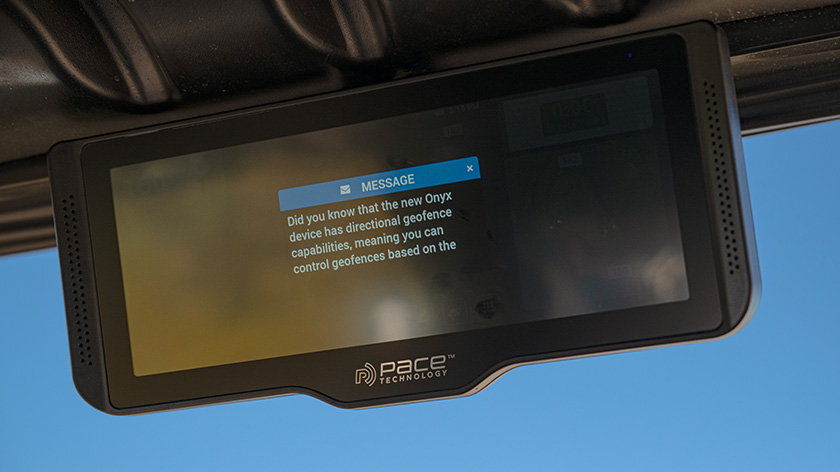

Learn how Pace Technology™ drives the game forward on the greens and behind the scenes. Explore the all-new ONYX™, setting a new standard for course technology with an industry-leading, ultra-wide display.
Learn More

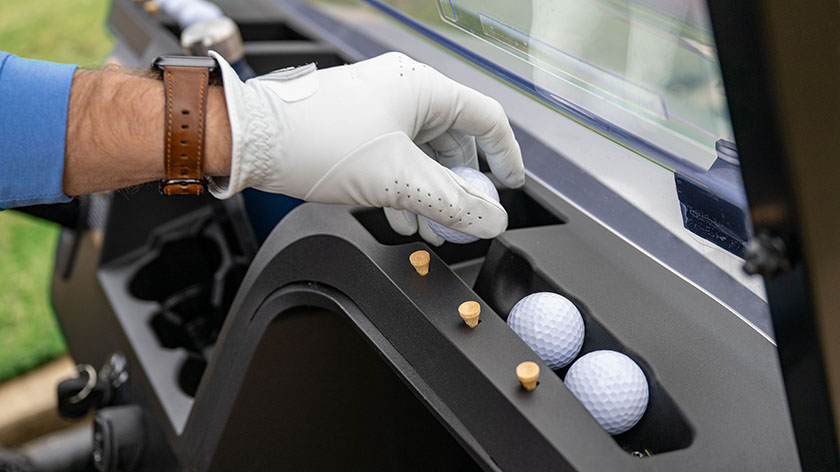

Golf-Centric Dash
The dash contains ample space for golf tools and personal items with dedicated storage for balls, tees, markers and cups.

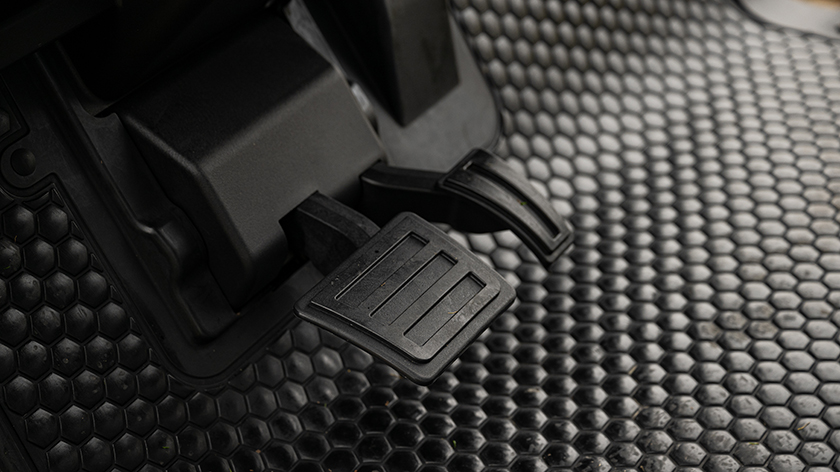

Hanging Pedals with IntelliBrake
Our automotive-style pedals with a built-in parking brake, provide improved durability and comfort. IntelliBrake®, automatic parking brake, available on ELiTE only.
Industry's Largest Bagwell
Golfers have easy access to ample club and bag storage.

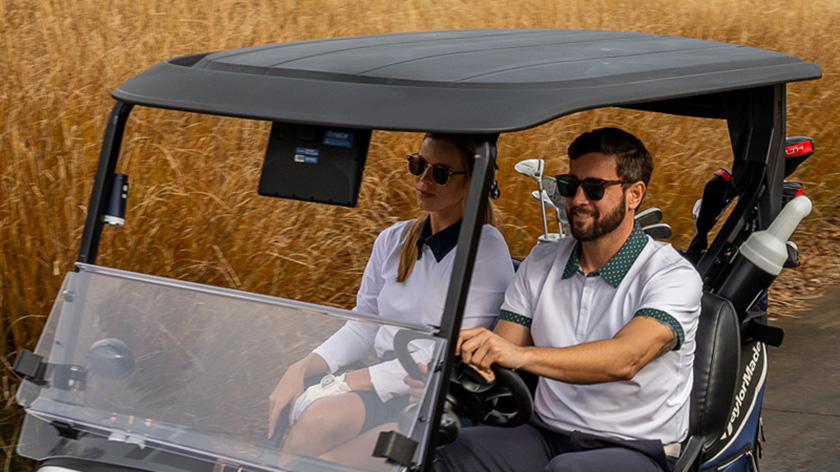

Modular Canopy
Even when it rains, the modular canopy will keep the drive dry. It features a sleek design with a built-in water management system, 2 strut mounted magnetic accessories and integrated hands grips.
RXV Powertrain Options
Choose between ELiTE Lithium or the closed-loop EFI EX1 gas engine for best-in-class capabilities around the course.
-
Learn MoreELiTE® Lithium Powertrain
Powered by Samsung SDI technology, ELiTE® lithium batteries offer zero maintenance, fast charging, and consistent, long-lasting power.
-
13.5-hp Gas Engine
The 13.5-hp powerhouse gas engine brings proven performance and unmatched reliability, along with closed-loop EFI for increased fuel efficiency.
