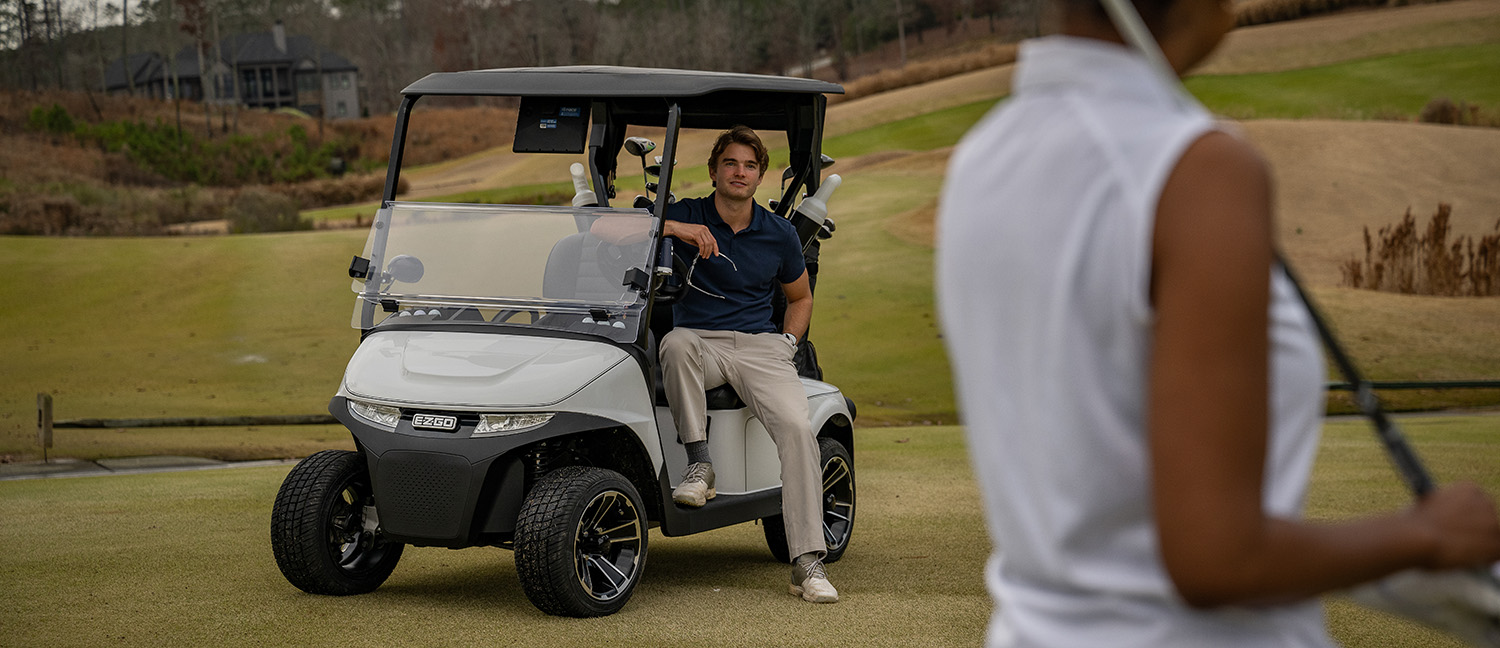

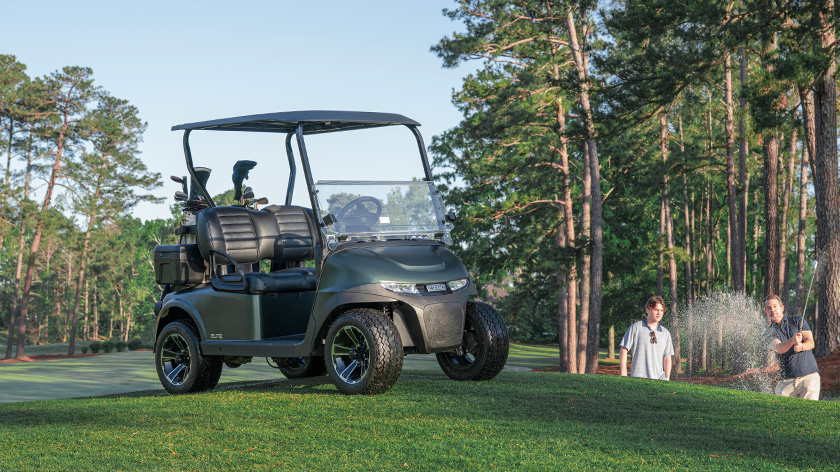

Freedom RXV Fleet vehicle on a golf course

Freedom RXV

The Freedom® RXV® gives golfers exactly what they want – the freedom to focus on their game. Because at the heart of it, the Freedom RXV is a seamless experience, ensuring a smooth ride with unparalleled efficiency and premier performance, round after round. Add in enhanced LED headlights, choose between ELiTE® lithium or a 13.5-hp gas engine model, and see why the Freedom RXV is always good to go.

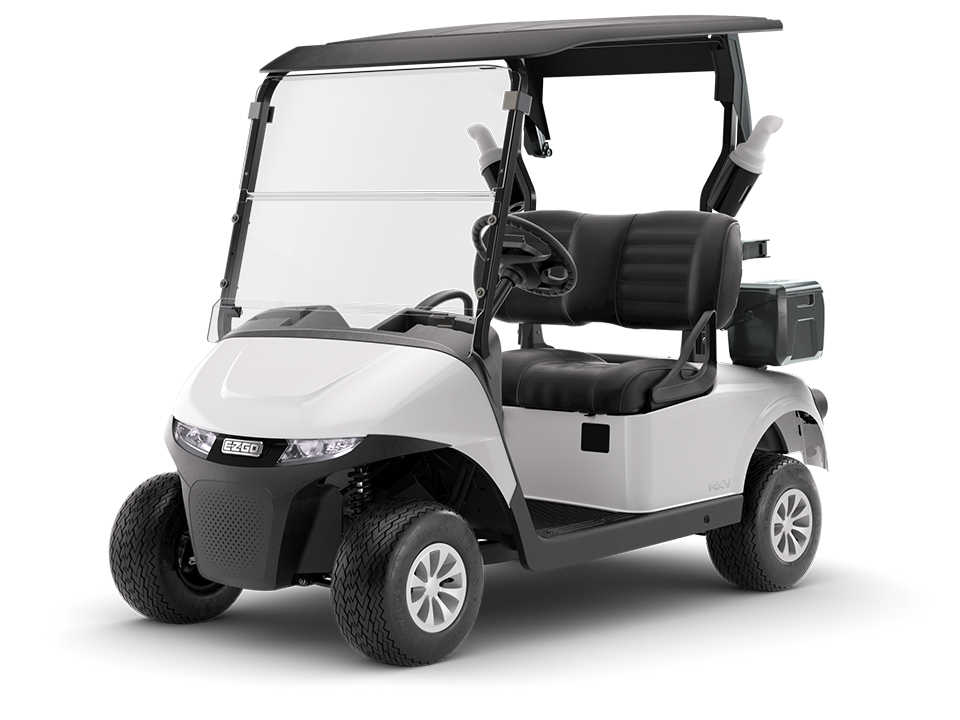

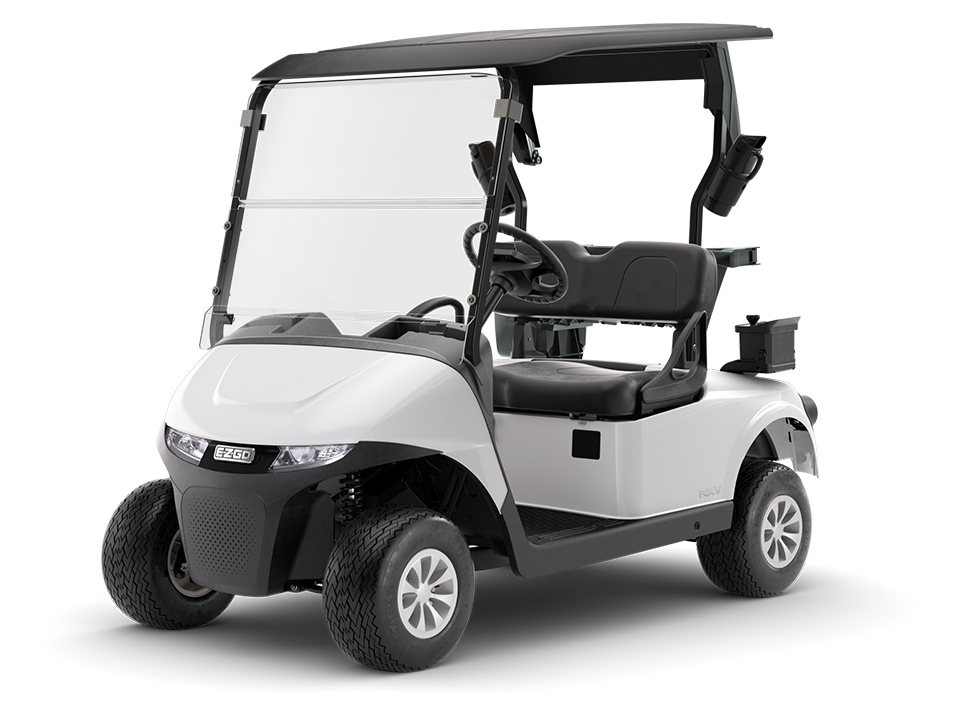

Shown on Freedom RXV Gas

Color: Bright White

Build & Price
  • Seats
    2 - 4
  • Powertrains
    ELiTE Lithium EX1 Gas
  • Price as configured excludes tax, freight, set-up fees, and dealer-added accessories. Subject to change.
Explore Specs

Freedom RXV Specifications

Explore the details that'll give your golfers a superior experience on the course.

  • Dimensions
      Freedom RXV Gas Freedom RXV ELiTE Lithium
    Overall Length 92.5 in (235 cm) 94.5 In (240 cm)
    Overall Width 45 in (114 cm) 47.0 in (119 cm)
    Overall Height (w/o Roof) 45.7 in (116cm) 47.5 in (121 cm)
    Overall Height (w/ Roof) 68.5 in (174cm) 70.0 in (178 cm)
    Wheel Base 65.7 in (167 cm) 65.7 in (167 cm)
    Front Wheel Track 35.5 in (90 cm) 35.5 in (90 cm)
    Rear Wheel Track 38 in (97 cm) 38.0 in (97 cm)
    Ground Clearance 3.3 in (8 cm) 4.0 in (10 cm)
  • Power
      Freedom RXV Gas Freedom RXV ELiTE Lithium
    Power Source Single Cylinder OHV, 4 Cycle, 24.5 cu in (401 cc) 56 Volts AC
    Valve Train Single Cylinder OHV N/A
    Fuel System Closed-Loop Electronic Fuel Injection N/A
    Horsepower/kW 13.5 hp (10.1 kW) J1995 Standard 4.4 hp (3.3 kW) Continuous
    Electrical System Starter / Generator. Solid State Regulator 56 Volt
    Key/Pedal Start Pedal Pedal
    Air Cleaner Industrial Rated Dry Filter N/A
    Lubrication Pressurized Oil System N/A
    Cooling System Air Cooled N/A
    Oil Filter Spin On N/A
    Fuel Capacity 5.82 Gal (22.0 Liter) N/A
    Speed Controller N/A 235 Amp AC Controller
    Drivetrain Continuously Variable Transmission (CVT) Motor Shaft Direct Drive
    Transaxle Differential with Helical Gears Limited Slip Differential
    Gear Selection Forward - Reverse Dash Mounted Forward-Neutral-Reverse
    Rear Axle Ratio 11:47:1 (Forward) 14:35:1 (Reverse) 16.99:1
    Batteries (Qty/Type) One, 12-Volt Maintenance-Free ELiTE 2.0, 56V Lithium
    Battery Charger N/A Lithium World Charger 56VDC (11 ft., 18 ft.) Cord
  • Performance
      Freedom RXV Gas Freedom RXV ELiTE Lithium
    Dry Weight 697 lb (316 kg) 605 lb (275 kg) (Without Batteries)
    Curb Weight 747 lb (339 kg) 655 lb (298 kg) (With two Li-Ion Modules)
    Load Capacity 500 lb (227 kg) 500-800 lb (227-360 kg)
    Outside Clearance 19 ft (5.8 m) 19.2 ft (5.8 m)
    Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) 17.5-19.5 mph (28-31 kph)
    Range ± 0.5 mph (± 0.8 kph) N/A
  • Steering & Suspension
      Freedom RXV Gas Freedom RXV ELiTE Lithium
    Steering Double Ended Rack & Pinion Double-Ended Rack and Pinion
    Suspension Independent A-Arm Coil Over Shock (Front) - Mono-Leaf Springs with Hydraulic Shocks (Rear) Front: Independent A-Arm Coil-Over Shock
    Service Brake Rear Wheel Mechanical Self-Adjusting Drum Induction Motor
    Parking Brake Self-Compensating, Single Point Engagement Automatic Electro-Magnetic
    Tires 18 x 8.50-8 (4-ply rated) 18 x 8.50-8 (4-ply rated
  • Body & Chassis
      Freedom RXV Gas Freedom RXV ELiTE Lithium
    Frame Welded Steel with Powder-Coat Protection Welded Steel with Powder-Coat Protection
    Body & Finish Injection Molded TPO Injection Molded TPO

    • *Please note that there are variations in specs of packages. Please refer to the sell sheet or your dealer for any specific questions.

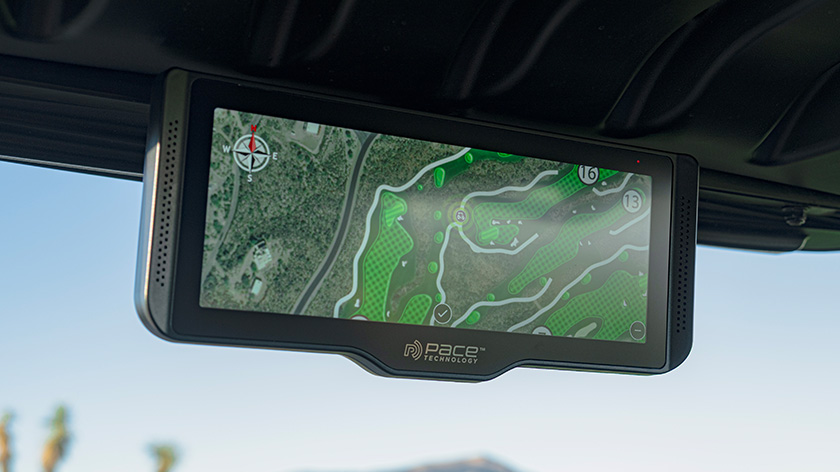

Pace Onyx new Ultra Wide Display

Setting the Pace

Learn how Pace Technology™ drives the game forward on the greens and behind the scenes. Explore the all-new ONYX™, setting a new standard for course technology with an industry-leading, ultra-wide display.

Learn More

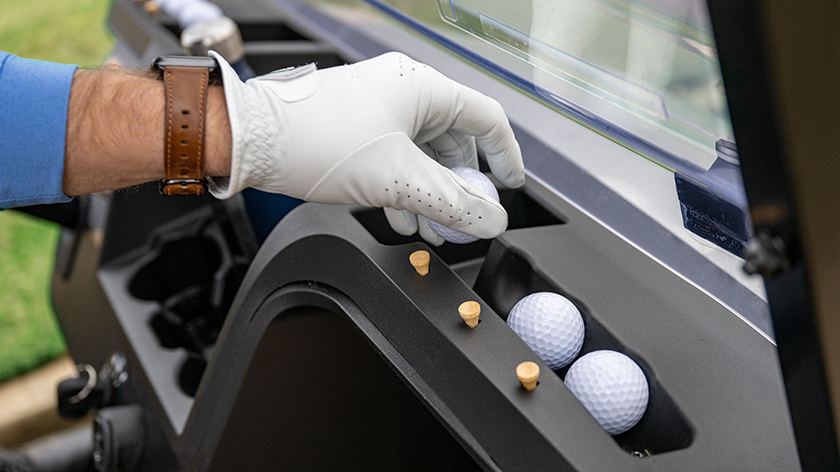

A golfer's hand grabs a golf ball from the golf-centric dash of their E-Z-GO.

Golf-Centric Dash

The dash contains ample space for golf tools and personal items with dedicated storage for balls, tees, markers and cups.

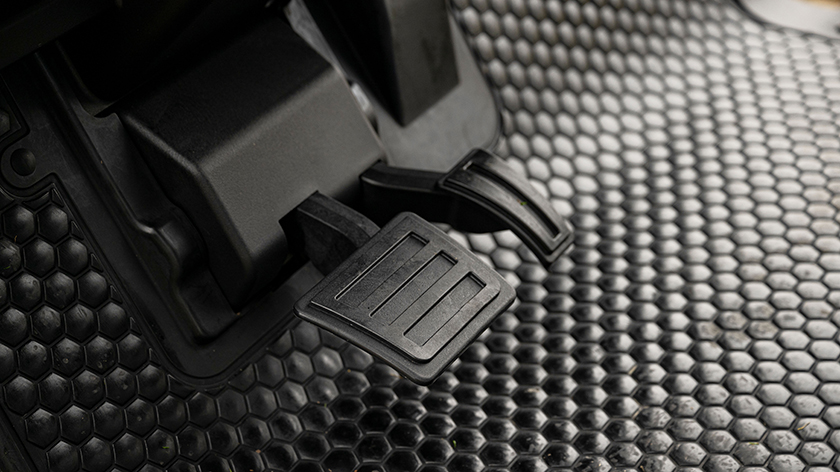

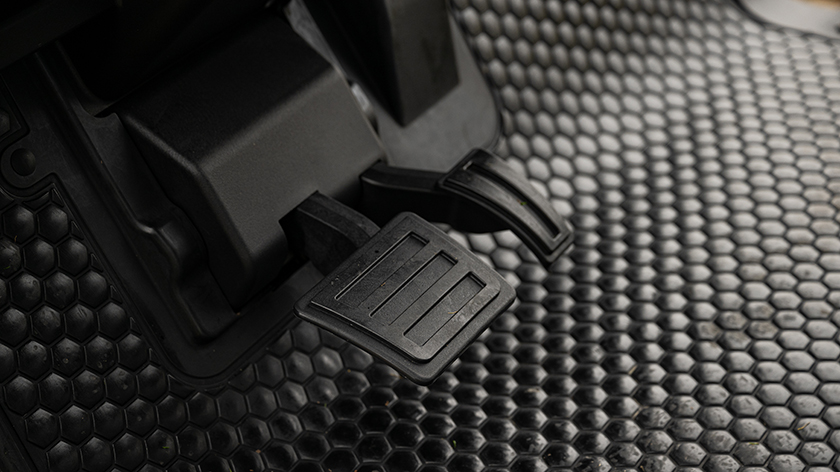

Hanging brake and gas pedals of an E-Z-GO.

Hanging Pedals with IntelliBrake

Our automotive-style pedals with a built-in parking brake, provide improved durability and comfort. IntelliBrake®, automatic parking brake, available on ELiTE only.

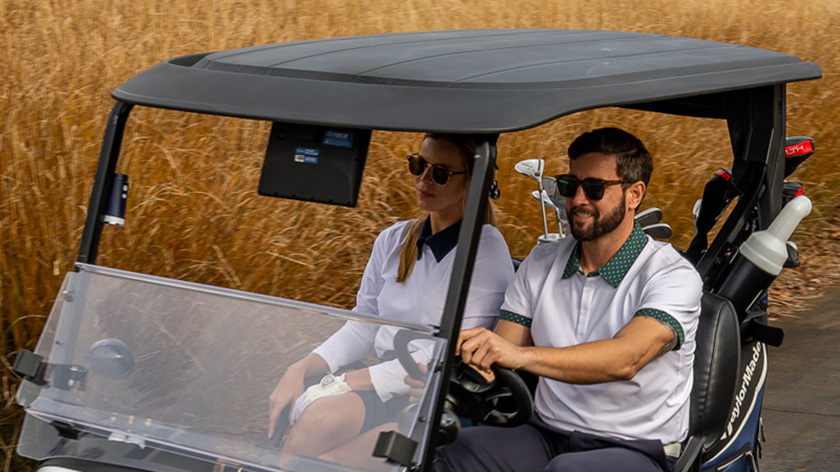

RXV Golf Modular Canopy

Modular Canopy

Even when it rains, the modular canopy will keep the drive dry. It features a sleek design with a built-in water management system and integrated hands grips.

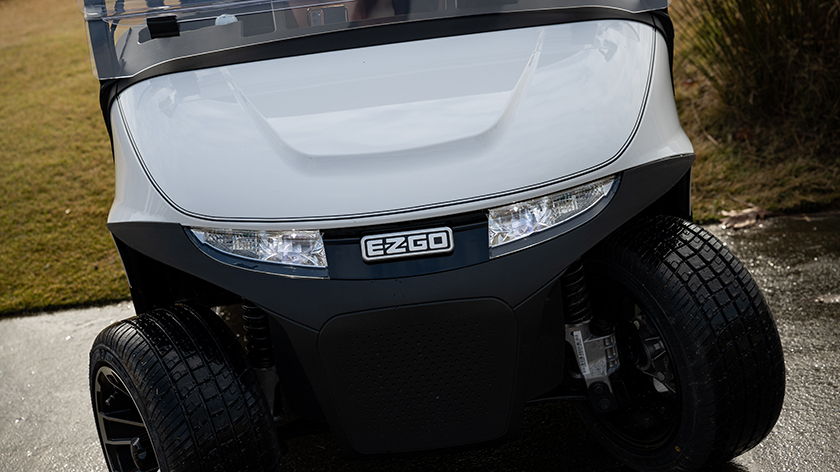

The frontend of an E-Z-GO golf cart.

LED Headlights and Taillights

Our headlights and taillights offer greater visibility and safety for those golfers who love an early morning or evening round.

Freedom RXV Powertrain Options

Choose between two efficient, hassle-free powertrain options for your fleet.

  • Electric Powertrain Icon

    ELiTE Lithium Powertrain

    Powered by Samsung SDI technology, ELiTE lithium batteries offer zero maintenance, fast charging, and consistent, long-lasting power.

    Learn More
  • Gas Powertrain Icon

    13.5-hp Gas Engine

    The 13.5-hp powerhouse gas engine brings proven performance and unmatched reliability, along with closed-loop EFI for increased fuel efficiency.
