Liberty Specs

Download Sell Sheet

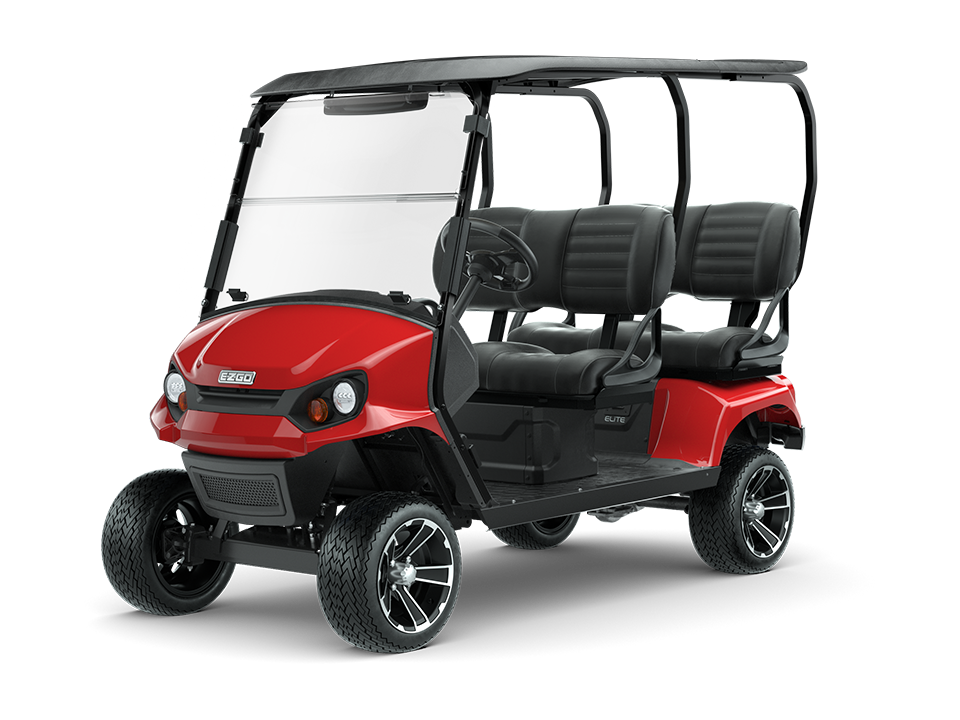

Liberty Adventure ELiTE Lithium	Liberty Links ELiTE Lithium	Liberty Commuter ELiTE Lithium	Liberty Explorer ELiTE Lithium
Powertrain ELiTE Lithium	Powertrain ELiTE Lithium	Powertrain ELiTE Lithium	Powertrain ELiTE Lithium
Seats 4 Passengers	Seats 4 Passengers	Seats 4 Passengers	Seats 4 Passengers
Starting MSRP For as low as $216/month	Starting MSRP For as low as $216/month	Starting MSRP For as low as $226/month	Starting MSRP For as low as $226/month
Colors Black Bright White Flame Red Metallic Charcoal Ocean Grey Patriot Blue Slate	Colors Black Bright White Flame Red Metallic Charcoal Ocean Grey Patriot Blue Slate	Colors Black Bright White Flame Red Metallic Charcoal Ocean Grey Patriot Blue Slate	Colors Black Bright White Flame Red Metallic Charcoal Ocean Grey Patriot Blue Slate
Reserve Now Build & Price	Reserve Now Build & Price	Reserve Now Build & Price	Reserve Now Build & Price

Overall Length *106 in (269 cm)	Overall Length 106 in (269 cm)	Overall Length *106 in (269 cm)	Overall Length *106 in (269 cm)
Overall Width *48 in (122 cm)	Overall Width 48 in (122 cm)	Overall Width *48 in (122 cm)	Overall Width *48 in (122 cm)
Overall Height (w/o Roof) 52.5 in (133 cm	Overall Height (w/o Roof) 52.5 in (133 cm)	Overall Height (w/o Roof) 52.5 in (133 cm)	Overall Height (w/o Roof) 52.5 in (133 cm)
Overall Height (w/ Roof) *76 in (193 cm)	Overall Height (w/ Roof) 76 in (193 cm)	Overall Height (w/ Roof) *76 in (193 cm)	Overall Height (w/ Roof) *76 in (193 cm)
Wheel Base 76.5 in (194 cm	Wheel Base 76.5 in (194 cm)	Wheel Base *76.5 in (194 cm)	Wheel Base *76.5 in (194 cm)
Front Wheel Track 38 in (97 cm)
Rear Wheel Track 39 in (99 cm)
Ground Clearance *5.5 in (14 cm)	Ground Clearance 5.5 in (14 cm)	Ground Clearance *5.5 in (14 cm)	Ground Clearance *5.5 in (14 cm)

Power Source 56.7 V Max
Valve Train AC Induction	Valve Train N/A	Valve Train N/A	Valve Train N/A
Fuel System N/A
Horsepower/kW 11.7 hp (8.7 kW)
Electrical System 48 VDC
Key/Pedal Start Pedal
Air Cleaner N/A
Lubrication N/A
Cooling System N/A
Oil Filter N/A
Fuel Capacity N/A
Speed Controller 235 Amp AC Controller
Drivetrain Direct-Drive AC Induction Motor
Transaxle *Differential with Helical Gears	Transaxle Differential with Helical Gears	Transaxle *Differential with Helical Gears	Transaxle *Differential with Helical Gears
Gear Selection Dash Mounted FNR/Key Switch
Rear Axle Ratio *17:1 (Forward)	Rear Axle Ratio 17:1 (Forward)	Rear Axle Ratio *17:1 (Forward)	Rear Axle Ratio *17:1 (Forward)
Batteries (Qty/Type) *ELiTE 2.2, Single 56.7V Max Lithium	Batteries (Qty/Type) ELiTE 2.2, Single 56.7V Max Lithium	Batteries (Qty/Type) *ELiTE 2.2, Single 56.7V Max Lithium	Batteries (Qty/Type) *ELiTE 2.2, Single 56.7V Max Lithium
Battery Charger Light World Charger, 56.7V, 10 ft. DC Cord

Dry Weight *914 lb (415 kg) (without Batteries)	Dry Weight 914 lb (415 kg) (without Batteries)	Dry Weight *914 lb (415 kg) (without Batteries)	Dry Weight *914 lb (415 kg) (without Batteries)
Curb Weight *960 lb (435 kg)	Curb Weight 960 lb (435 kg)	Curb Weight 960 lb (435 kg)	Curb Weight 960 lb (435 kg)
Load Capacity 800 lb (363 kg)
Outside Clearance *25.7 ft (7.83 m)	Outside Clearance 25.7 ft (7.83 m	Outside Clearance *25.7 ft (7.83 m)	Outside Clearance *12.85 ft (3.92 m)
Speed *Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph)	Speed Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph)	Speed *Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph)	Speed *Up to 19 mph ± 0.5 mph (Up to 30.6 kph ± 0.8 kph)
Range N/A

Steering & Suspension

Steering Self-Compensating Reduction Rack and Pinion
Suspension Leaf Springs with Hydraulic Shock Absorbers
Service Brake *Dual Rear Wheel Mechanical Self-Adjusting Drum	Service Brake Dual Rear Wheel Mechanical Self-Adjusting Drum	Service Brake *Dual Rear Wheel Mechanical Self-Adjusting Drum	Service Brake *Dual Rear Wheel Mechanical Self-Adjusting Drum
Parking Brake Automatic Electro-Magnetic (ELiTE Only)
Tires MT Paramount, 23x10-12, Black Steel D Window Wheel	Tires Hole-N-One, 20x9-12, Rogue Alloy Wheel	Tires Kruizer, 185/60-14, SBR, Machined SPDR Alloy Wheel	Tires MT Paramount, 23x10-14, Radial, Black SPDR Alloy Wheel

Frame Welded Steel with DuraShield™ Powder Coat
Body & Finish Injection Molded TPO

*Please note that there are variations in specs of packages. Please refer to the attached sell sheet or your dealer for any specific questions.
